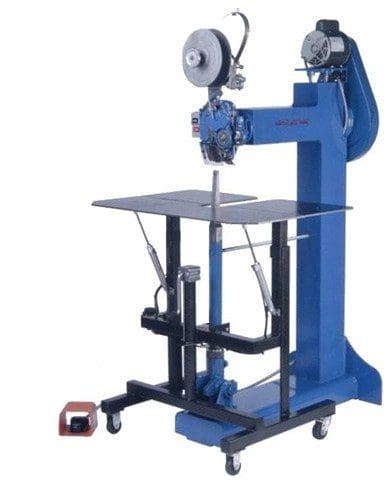

Ideal S-25-SAW Metal Sign Stitcher

All parts are manufactured to rigid specifications for smoothest possible operation, long product life, and perfect interchangeability of replacement parts. Many parts can be reversed to double the service life.

• 26″ throat accommodates stitching up to 52″ letters
• Uses 18 gauge (.0475), stainless steel or galvanized wire 10# coil
• Adequate space for all depths of letters
• 1-3/8″ clearance between clincher & head
• A safe & comfortable work height: from floor to top of post is 46-1/2″
• Letters up to 18″ deep can be stitched without any adjustments. 18″ depth from clincher (anvil) top to support cross bar
• Minimal floor space; a quarter of the space required by other fastening equipment (24″x41″)
• Standard electrical – 110/115 volts – 1/2 HP

Applications:

• Steel
• Copper
• Aluminum
• Rubber
• Plastics
• Fibers etc.
